Home > Products > Histology/Pathology > Pathology instruments > Semi microtome

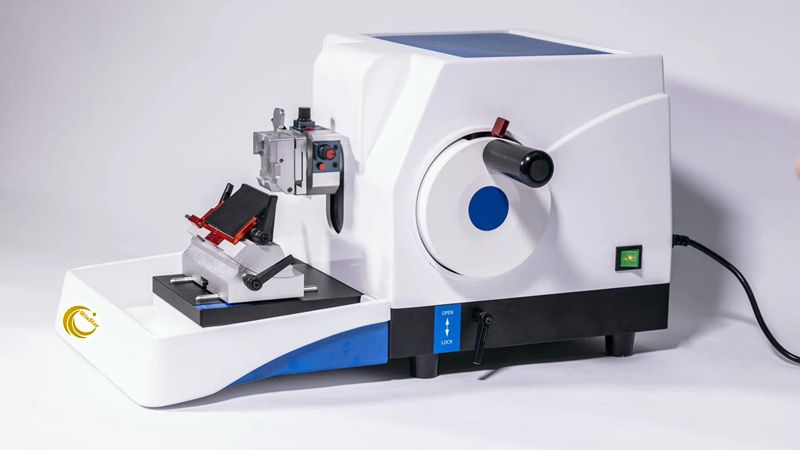

Product name : Semi microtome

Item : 202088231619

自定义参数 :

Enlarge Image

Back

←[Previous Product] [Next Product]→

Details:

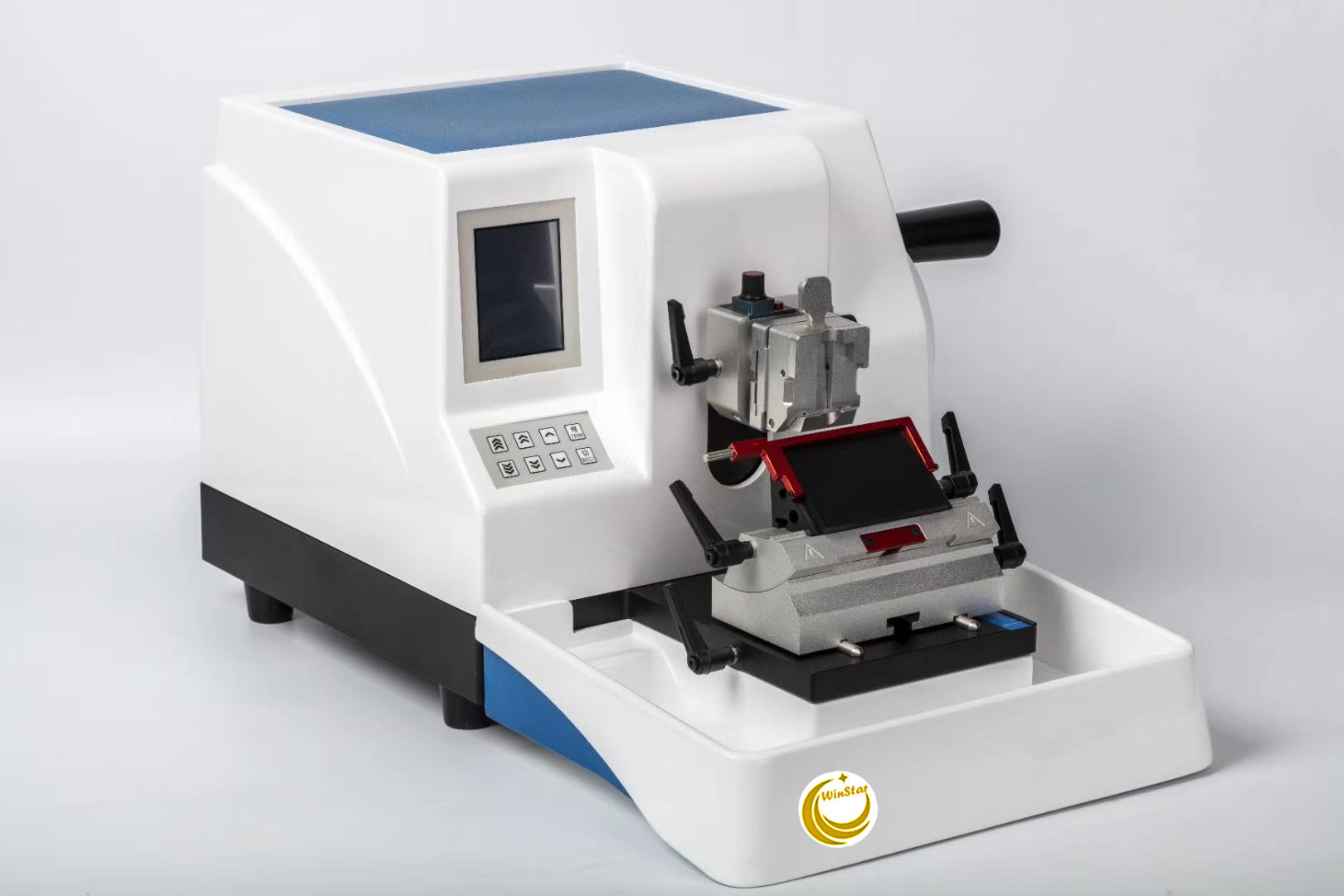

1. High-definition color touch screen, the operation is more convenient, intuitive and modern;

2. High-precision feed system: 25600 subdivision high-precision controller with high-precision photoelectric sensor system to ensure 0.1μm slice accuracy;

3. Fast switching of cutting and trimming modes: the cutting and trimming modes can be quickly switched on the LCD screen or control panel;

4. Cutting count function: automatically shield the trim value, and only record the cutting value;

5. Half-circle reciprocating cutting/retouching mode to better improve work efficiency;

6. In order for users to have a better operating experience, we have made a number of optimizations for the forward and backward of the sample, including continuous movements of 0.1mm/s～3.5mm/s and single-point movements of 1～100μm;

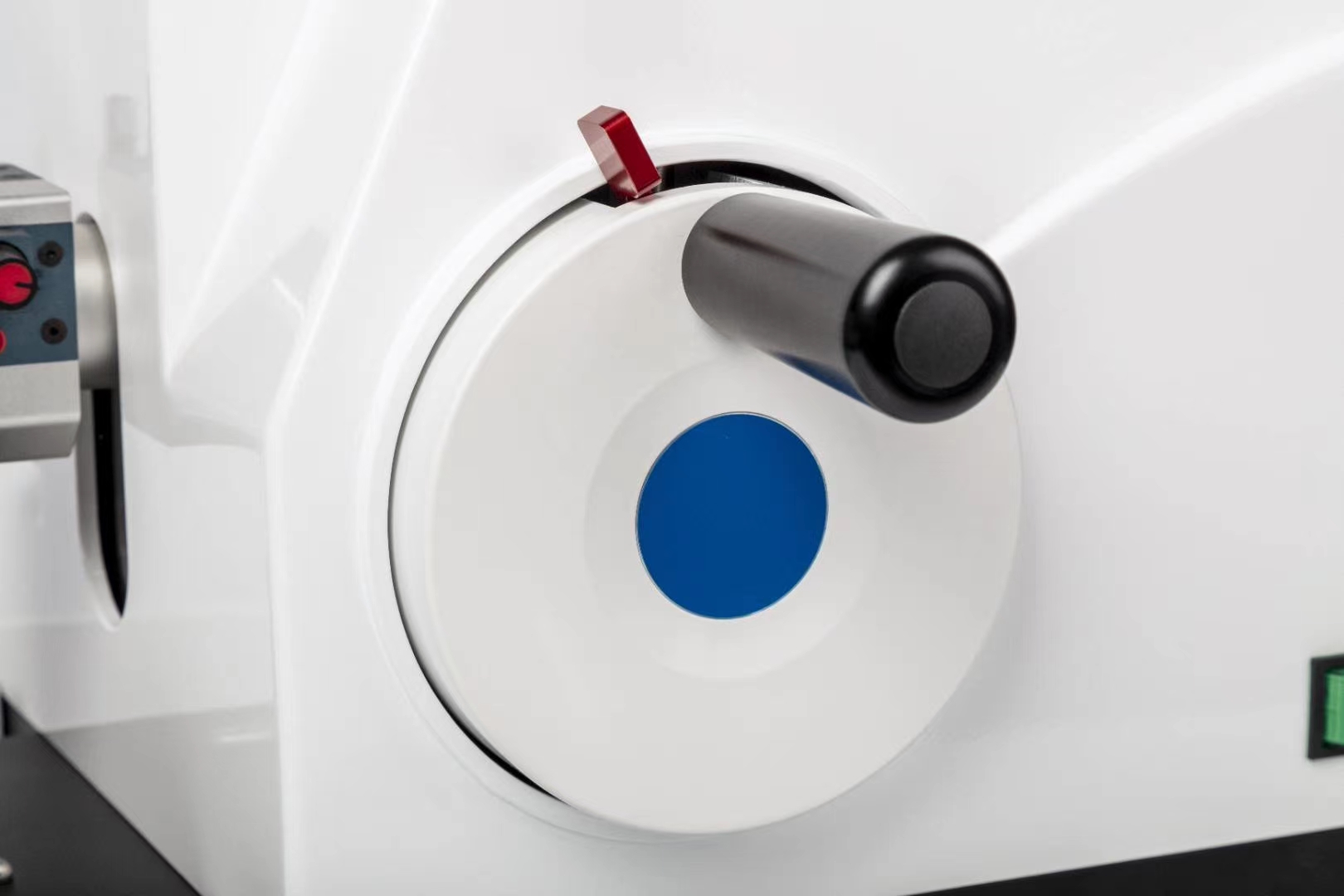

7. The handwheel can be locked at any position in 360°, and the operation is simple and convenient;

8. The knife holder is made of hardened manganese steel, which is better adapted to various tissues, bones, plants, plastics and other industrial materials, polymer materials and other precision cutting needs;

9. The special anti-static and wax-free process makes the slices smoother and translucent, and solves the trouble of sticking wax slices;

10. The advanced and precise crankshaft and counterweight design ensure that the handwheel is lighter and more comfortable.

Size：	LWH=580mm490mm315mm；	Power：	AC220V±10%，50Hz±1Hz；
Section thickness setting：	0～99.9μm，Accuracy 0.1μm；	Trimming Thickness setting：	0～999μm，Accuracy 1μm；
Specimen retractable ：	0～100μm, any setting；	Slow forward/slow back setting：	1～100μm any setting；
Max. specimen：	wax cube size（506040mm）/cassette holder	Blade holder：	Left to right, right to left move，Angel 0°～15°adjustable；
Distance of sample moving up and down：	60mm；	Specimen Feed/Vertical stroke：	28±1mm；
Specimen angel adjustment：	Horizontal 0°～15°adjustable，Vertical 0°～15°adjustable ，360°rotatory；
Fast feeding or vertical stroke：	1mm/s～3.5mm/s any setting；
Accuracy feeding or vertical stroke：	0.1mm/s～1mm/s any setting；
